Defender Plus Heavy Duty All Stacks

ASSA/Yale Securistyle

Low Stock Level

Quick Overview

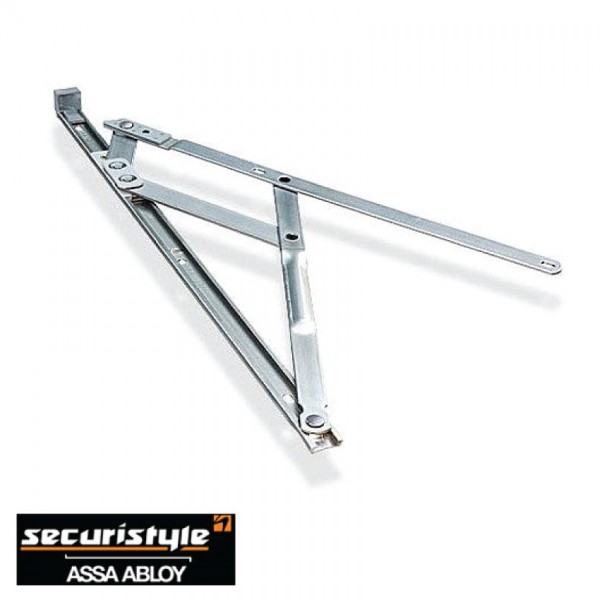

DEFENDER PLUS FRICTION STAY WINDOW HINGE


Heavy Duty Friction Hinge.


Ability to carry a load of up to 50kg top hung and 40kg side-hung


DEFENDER PLUS HD DATA SHEETS HERE



Make & Material Size Orientation Stack Height Unit of Sale Product Availability Qty
Securistyle Defender Austenitic 16" - 400mm Side Hung 13mm - 14mm Box of 25 16" Side Hung Austenitic 13mm Stack - 25 Per Box In stock
Securistyle Defender Austenitic 16" - 400mm Side Hung 16mm - 17mm 25 pairs 16" Side Hung Austenitic 16mm Stack - 25 Per Box In stock
Securistyle Defender Austenitic 16" - 400mm Side Hung 17mm - 18mm 25 pairs 16" Side Hung Austenitic 17mm Stack - 25 Per Box In stock
Securistyle Defender Austenitic 24" - 600mm Top Hung 13mm - 14mm 25 pairs 24" Top Hung Austenitic 13mm Stack - 25 Per Box In stock
Securistyle Defender Austenitic 24" - 600mm Top Hung 16mm - 17mm 25 pairs 24" Top Hung Austenitic 16mm Stack - 25 Per Box In stock
Securistyle Defender Austenitic 24" - 600mm Top Hung 17mm - 18mm 25 pairs 24" Top Hung Austenitic 17mm Stack - 25 Per Box In stock
reset

* Required Fields

Details

Features Ability to carry a load of up to 50kg top hung and 40kg side-hung Asymmetric location system for reliable and accurate closure Improved weather sealing and draught proofing performance from asymmetical vent arm Top hung feature slot-hole-sole vent fixing configuration for ease of adjustment and guaranteed fixing into reinforcement on PVCu window frames Enclosed end cap to prevent ingress of debris and provide increase cavity tolerance Timber variant avaliable on request Specification Tested to 30,000 cycles Available in ferritic* and austenitic* stainless steel 10 or 12 Year Guarentee depent on material selection (details available upon request) * Standard Ferritic (was 430) steel to BS EN 10088-2 Grade 1.4016 or Austenitic (was 304) stainless steel BS EN 10088-2 Grade 1.4301 for enhanced corrosion resistance.
