Defender Restricted - 16mm Stack

ASSA/Yale Securistyle

Ferritic Usually In Stock

Quick Overview

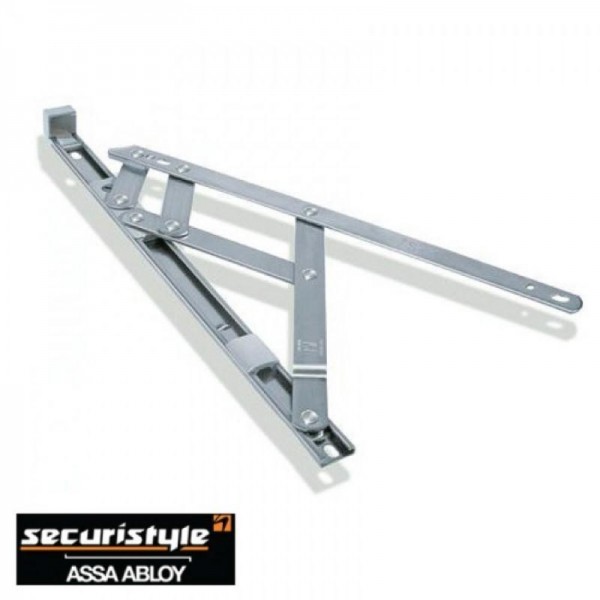

DEFENDER FRICTION STAY WINDOW HINGE - 16mm STACK HEIGHT


Ferritic 430* as standard from stock.


Austentic on request.


DEFENDER STANDARD OPENING DATA SHEETS HERE


DEFENDER EGRESS EASY C:EAN DATA SHEETS HERE


DEFENDER RESTRICTED DATA SHEETS HERE


DEFENDER PLUS HD DATA SHEETS HERE




Make & Material Size Orientation Unit of Sale Product Availability Qty
Defender Restricted 12" - 300mm Side Hung 50 Left Hand 12" S/Hung Restricted -16mm, Ferritic - 50 Left Hand Only In stock
Defender Restricted 16" - 400mm Side Hung 25 pairs 12" S/Hung Restricted -16mm, Ferritic - 50 Right Hand Only In stock
Securistyle Defender Austenitic 12" - 300mm Side Hung 50 Left Hand 12" S/Hung Restricted -16mm, Austenitic - 50 Left Hand Only In stock
Securistyle Defender Austenitic 12" - 300mm Side Hung 50 Right Hand 12" S/Hung Restricted -16mm, Austenitic - 50 Right Hand Only In stock
Defender Restricted 16" - 400mm Side Hung 50 Left Hand 16" S/Hung Restricted -16mm, Ferritic - 50 Left Hand Only In stock
Defender Restricted 16" - 400mm Side Hung 50 Right Hand 16" S/Hung Restricted -16mm, Ferritic - 50 Right Hand Only In stock
Securistyle Defender Austenitic 16" - 400mm Side Hung 50 Left Hand 16" S/Hung Restricted -16mm, Austenitic- 50 Left Hand Only In stock
Securistyle Defender Austenitic 16" - 400mm Side Hung 50 Right Hand 16" S/Hung Restricted -16mm, Austenitic- 50 Right Hand Only In stock
Defender Restricted 16" - 400mm Top Hung 25 pairs 16" T/Hung Restricted -16mm, Ferritic - 25 Pair Per Box In stock
Securistyle Defender Austenitic 16" - 400mm Top Hung 25 pairs 16" T/Hung Restricted -16mm, Austenitic - 25 Pair Per Box In stock
Defender Restricted 20" - 500mm Top Hung 25 pairs 20" T/Hung Restricted -16mm, Ferritic - 25 Pair Per Box In stock
Securistyle 16" - 400mm Top Hung 25 pairs 20" T/Hung Restricted -16mm, Austenitic - 25 Pair Per Box In stock
Defender Restricted 24" - 600mm Top Hung 25 pairs 24" T/Hung Restricted -16mm, Ferritic- 25 Pair Per Box In stock
Securistyle Defender 24" - 600mm Top Hung 25 pairs 24" T/Hung Restricted -16mm, Austenitic - 25 Pair Per Box In stock
reset

* Required Fields

Details

Features Improved weather sealing and draught proofing performance from extended enclosed end cap and asymmetrical vent arm form when tested to BS 6375-1 Lipped slider for enhanced smooth operation Easy friction adjustment without metal to metal contact Uniqure robust cam friction device eliminates any risk of friction screw misuse Slot-hole-slot vent fixing configuration for ease of adjustment and guaranteed fixing into reinforcement on PVC-u window frames Enclosed end cap to prevent ingress debris and provide increased cavity tolerance Specifications Long and reliable working life tested to 30,000 cycles Available in ferritic 430* as standard or austenitic 304* stainless steel for enhanced corrosion resistance 10 Year Guarentee (details available upon request) *Standard ferritic (was 430) to BS EN 10088-2 or Austenitic (was 304) stainless steel to BS EN 10088-2 for enhanced corrosion resistance

Can't see the document you are looking for?   Enquire Here.
