Defender Standard - 16mm Stack Ferritic

ASSA/Yale Securistyle

Usually In Stock

Quick Overview

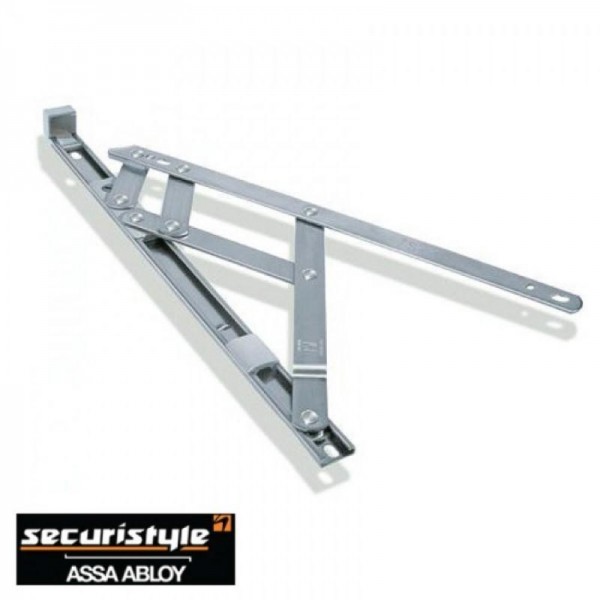

DEFENDER FRICTION STAY WINDOW HINGE - 16mm STACK HEIGHT


Ferritic 430* as standard from stock.


Austentic on request.


DEFENDER STANDARD OPENING DATA SHEETS HERE


DEFENDER EGRESS EASY C:EAN DATA SHEETS HERE


DEFENDER RESTRICTED DATA SHEETS HERE


DEFENDER PLUS HD DATA SHEETS HERE




Make & Material Size Orientation Unit of Sale Product Availability Qty
Securistyle 8" - 200mm Universal 25 pairs 8" Top/Side Hung - 16mm Ferritic- Box of 25 Pairs In stock
Securistyle 10" - 250mm Top Hung 25 pairs 10" Top Hung - 16mm Ferritic- Box of 25 Pairs In stock
Securistyle Defender 12" - 300mm Top Hung 25 pairs 12" Top Hung - 16mm Ferritic- Box of 25 Pairs In stock
Securistyle Defender 12" - 300mm Side Hung 25 pairs 12" Side Hung - 16mm Ferritic- Box of 25 Pairs In stock
Securistyle Defender 16" - 400mm Top Hung 25 pairs 16" Top Hung - 16mm Ferritic- Box of 25 Pairs In stock
Securistyle Defender Ferritic 16" - 400mm Side Hung 25 pairs 16" Side Hung - 16mm Ferritic- Box of 25 Pairs In stock
Securistyle Defender 20" - 500mm Top Hung 25 pairs 20" Top Hung - 16mm Ferritic- Box of 25 Pairs In stock
Securistyle Defender Ferritic 24" - 600mm Top Hung 25 pairs 24" Top Hung - 16mm Ferritic- Box of 25 Pairs In stock
reset

* Required Fields

Details

Features Improved weather sealing and draught proofing performance from extended enclosed end cap and asymmetrical vent arm form when tested to BS 6375-1 Lipped slider for enhanced smooth operation Easy friction adjustment without metal to metal contact Uniqure robust cam friction device eliminates any risk of friction screw misuse Slot-hole-slot vent fixing configuration for ease of adjustment and guaranteed fixing into reinforcement on PVC-u window frames Enclosed end cap to prevent ingress debris and provide increased cavity tolerance Specifications Long and reliable working life tested to 30,000 cycles Available in ferritic 430* as standard or austenitic 304* stainless steel for enhanced corrosion resistance 10 Year Guarentee (details available upon request) *Standard ferritic (was 430) to BS EN 10088-2 or Austenitic (was 304) stainless steel to BS EN 10088-2 for enhanced corrosion resistance
