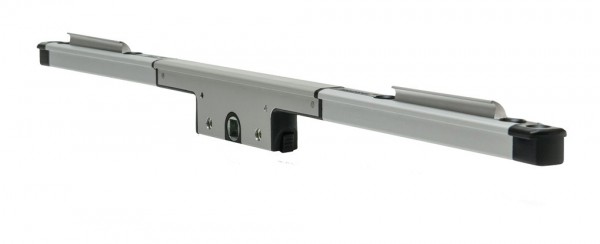

Yale Rapide Window Lock (Securistyle Blade) - 22mm Backset

IFI

Usually In Stock

Quick Overview

The Rapide window lock is a unique fully retractable window lock, sitting flush within the Eurogroove, removing the common issues of cam clash and keep alignment found with other styles of lock.

The innovative design allows pre-drilling for keep alignment reducing fabrication time, The system also allows separate installation of the keep and lock prior to the hanging of the sash to deliver greater flexibility and efficiency during fabrication.

The unique rotating action of the lock provides users with a smooth and easy to close window, with minimum wear to components, leading to a long service life with no loss of compression.

Features

Innovative fully retractable locking bar
Extremely fast and easy it fit
Eliminates cam clash Gearbox cartridge allows simple handling selection of the lock
Fits sash rebate sizes between 400mm and 1599mm*
30mm and 60mm keeps with night vent position
20mm and 22mm back sets
Included in the Lifetime Guarantee (terms and conditions apply)
* The sash rebate can go down to 260mm with our single directional lock.

Specifications

BS EN 1670 Grade 4 corrosion resistance (240 hours Natural Salt Spray)
Tested to a minimum 30,000 cycle operational lifespan
12 year mechanical guarantee



Unit of Sale Size/Length Backset Handing Product Availability Qty
Box of 10 400mm 22mm Non Handed Dual action - Reversible - 400mm - 10 Per Box In stock
Box of 10 520mm 22mm Non Handed Dual action - Reversible - 520mm - 10 Per Box In stock
Box of 10 640mm 22mm Non Handed Dual action - Reversible - 640mm - 10 Per Box In stock
Box of 10 760mm 22mm Non Handed Dual action - Reversible - 760mm - 10 Per Box In stock
Box of 10 880mm 22mm Non Handed Dual action - Reversible - 880mm - 10 Per Box In stock
Box of 10 1000mm 22mm Non Handed Dual action - Reversible - 1000mm - 10 Per Box In stock
Box of 10 1120mm 22mm Non Handed Dual action - Reversible - 1120mm - 10 Per Box In stock
Box of 10 1240mm 22mm Non Handed Dual action - Reversible - 1240mm - 10 Per Box In stock
Box of 10 1360mm 22mm Non Handed Dual action - Reversible - 1360mm - 10 Per Box In stock
Box of 10 1480mm 22mm Non Handed Dual action - Reversible - 1480mm - 10 Per Box In stock
Box of 10 230mm 22mm Left Hand Dual action - Left Hand - 230mm - 10 Per Box In stock
Box of 10 230mm 22mm Right Hand Dual action - Right Hand - 230mm - 10 Per Box In stock
Box of 10 350mm 22mm Left Hand Dual action - Left Hand - 350mm - 10 Per Box Out of stock
Box of 10 350mm 22mm Right Hand Dual action - Right Hand - 350mm - 10 Per Box In stock
reset

* Required Fields

Details

Ready to Fabricate Faster to fit: With as few as six screws to fit locks and keeps, Rapide requires fewer fixings than any other security window lock in the UK, increasing manufacturing efficiency and reducing costs. Manufacturing efficiencies: Rapide eliminates inaccuracy and risk during keep installation ensuring throughput is maximised. The profile can be pre-drilled and keeps can be fitted at any time in the production process without marking, simplifying and speeding up fabrication. Reducing stock holding: Rapide's unique rotary locking system ensures one locking point height for all profiles, reducing stock holding for multi system users. Simplified ordering: Revolutionary patented gearbox cassette design makes Rapide a truly non-handed lock, reducing stockholding and simplifying re-ordering. Superior strength: Fully occupying the eurogroove, Rapide's robust aluminium channel significantly enhances the structural strength Enhanced performance: Rapide is the only window lock in the UK which engages the full length of the keep, for optimum security and compression performance. Ready to Install Advanced performance: Unlike all other window locks, Rapide engages the full length of the keeps, for ultimate security and customer peace of mind. Instant performance: No need to adjust cams or replace keeps during or after installation- simplifying installation and reducing call backs Reduced call backs: Fitted entirely within the eurogroove, Rapide's locking points retract fully when disengaged, eliminating cam clash issues - reducing call backs Extended Service life: Rapide's unique locking action significantly reduces wear, eliminating compression loss and ensuring consistent weather-sealing performance for the life of the products Superior corrosion resistance: Rapide's aluminum construction delivers superb corrosion resistance, further enhancing product service life - even in aggressive environments. Flexible system: Rapide's off-set locks allow for lower handle placement - enabling greater design freedom and easy operation of taller windows. Ready to Specify Maintenance friendly: Rapide's patented removable gearbox cassette allows for easy repair in cases of window abuse and negates the need for maintenance teams to carry large stocks of replacement window locks. Low operating forces: Easier to operate for those with reduced dexterity. No need to adjust cams or replace keeps after installation - reducing maintenance calls and costs Reducing call backs: Fitted entirely within the eurogroove, Rapide's locking points retract fully when disengaged, eliminating cam clash issues and reducing call backs. Advanced corrosion resistance: Corrosion resistance in excess of EN 1670: Grade 4, further enhancing product service life - even in aggressive environments.
